BZJ5038B Semi-auto Sleeve Wrapper & BSE5040A PE Shrink Packer

Product Categories

Summarize:

BZJ5038 series sleeve wrapper is suitable for wrapping pop-cans, bottles, etc, with bottom-tray or without bottom-tray,The machine adopts the Germany advanced technology and international famous brands, which makes capability stable and using long-time.

Share To:

Inquiry Now

Add Inquiry Cart

Product Description

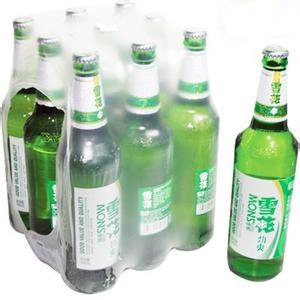

Packing Result:

Characteristic:

Up and down magnetic switch control system prevents mistakes while sealing and protect the operators.

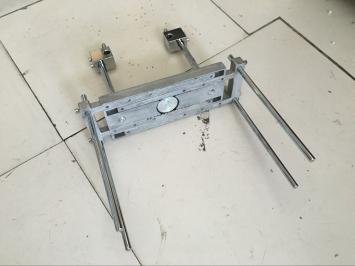

The input position is adjustable, base on the size of products packaged.

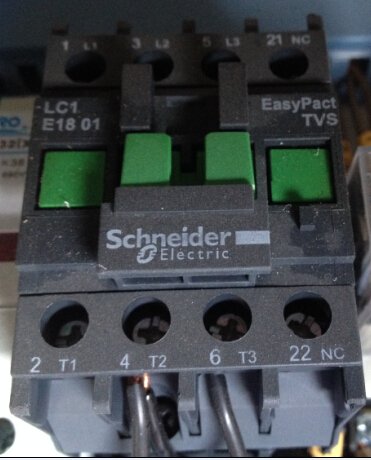

‘Schneider’ AC contractor

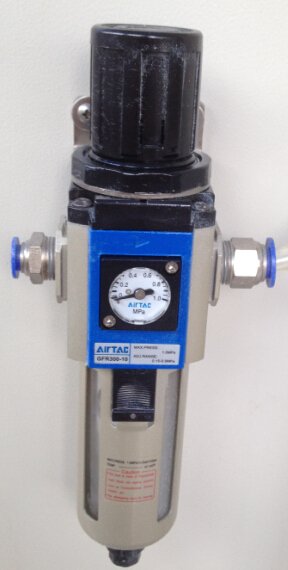

Airtac Main air filter

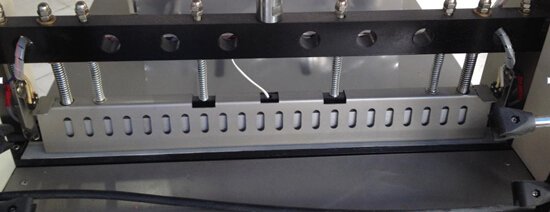

Sealing part

Spare parts box

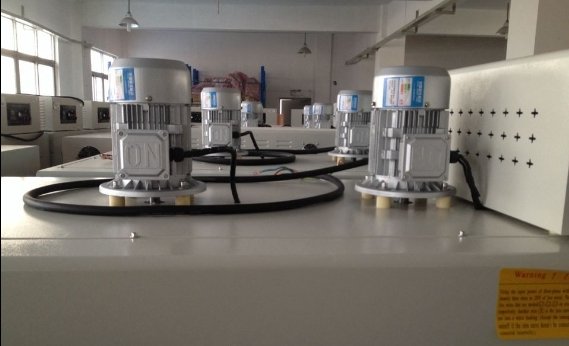

The BSE-A series PE film shrink tunnel is suitable for all kinds of shrink films perfectly.Large power fan system ensures the excellent effect of shrinking in one time.

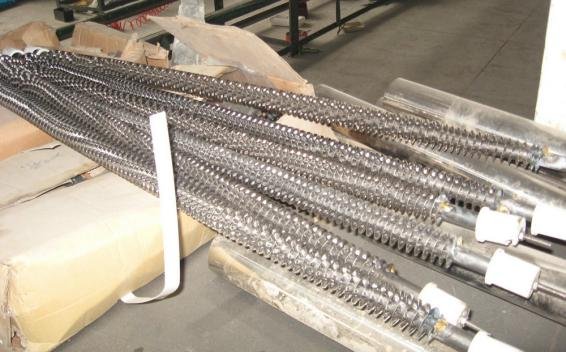

1500W steel heating pipe offer enough heating power

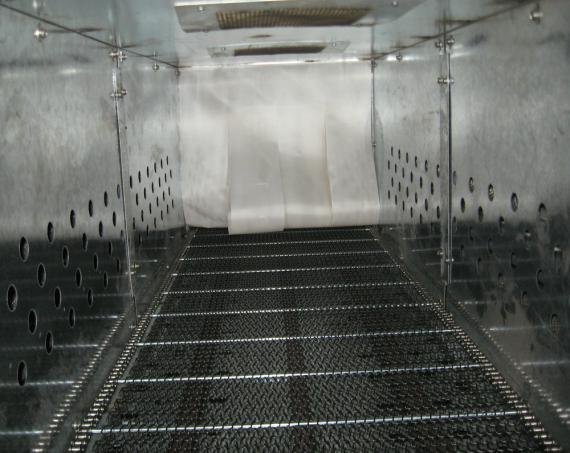

Net&chain type conveyor ensure heavy duty work and heating circle ensure shrink effect excellent

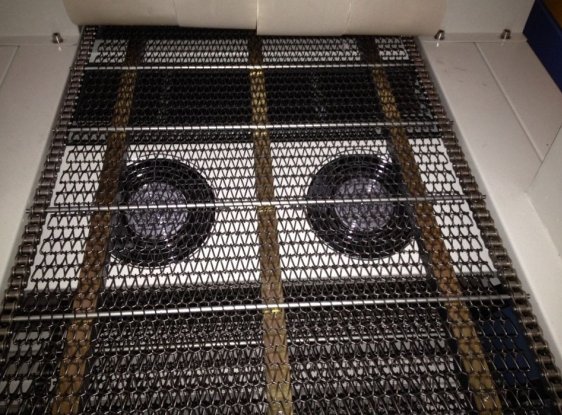

Super cooling system cools the packing and makes the figuration perfectly

Product Parameters

Model	BZJ-5038B (Pneumatic)	Model	BSE5040A
Power supply	220V 50-60Hz 1phase 1.8KW	Power supply	3phase 380V 50HZ
Capacity	1-6pcs/minute	Heater power	20KW Adjuster
Sealing time/shrink time	0.5-1.5s, 0-0.6s	Conveyer speed	0-10m/minute
Conveyor loading	25kg	Tunnel size(LWH)	1500500460MM
Film width	Max. 550mm	Conveyer loading	30KGS MAX.
Film thickness	0.04-0.12mm	Shrink film	PE, POF, PVC
Max. packing dimension(LWH)	450 x 270 x 330mm	Machine weight	410KG
Min. packing dimension(LWH)	250 x 60 x 140mm	Machine size	25008201680MM
Machine size(LWH)	1020 x 830 x 1980mm
Packing size	11509402040mm/ 289KG	Packing size	26009601810 mm/460KG
Unit price(EXW)
Delivery date	10-12 working days after payment confirmed
