Automatic Powder Filling Machine with Shell(RF-F80)

The powder filling machine according to the national GMP standard design, this machine and bottle machine, to cap capping machine, labeling machine and other equipment to form an assembly line. It is suitable for packing powdery materials in food, medicine, daily use department stores and other industries. Such as milk powder, glucose, protein powder, cocoa powder, coffee powder, rice powder, solid drinks and other powder, ultra-fine powder materials. The whole machine frame is made of stainless steel, motor, cylinder, electrical accessories, pneumatic components are selected well-known brand, also can be designated by the customer brand. Can be applied to food and pharmaceutical and corrosive chemical raw materials. Centralized dust removal, no dust pollution workshop, residue cleaning convenient, can be washed with water.

Product Description

Product Description

1. All stainless steel structure, combined transparent material box, no tools can be easy to disassemble and wash.

2. High precision servo motor control filling, accurate measurement.

3. All kinds of products can be stored to adjust the parameters of the formula, for future use, up to 8 recipes stored.

4. The replacement of spiral accessories, to adapt to ultra-fine powder to small particles and other materials.

5. Touch Screen PLC control, no bottle not filling.


Detailed Images

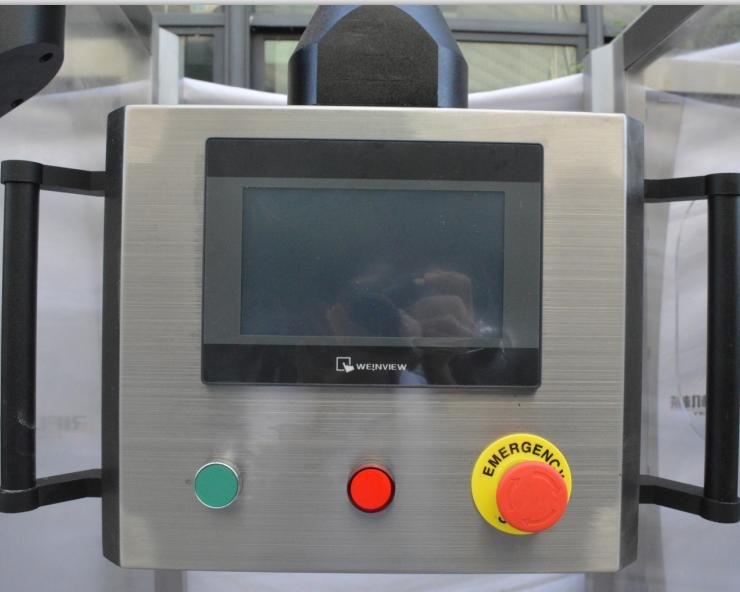

Man-machine operation interface/more convenient

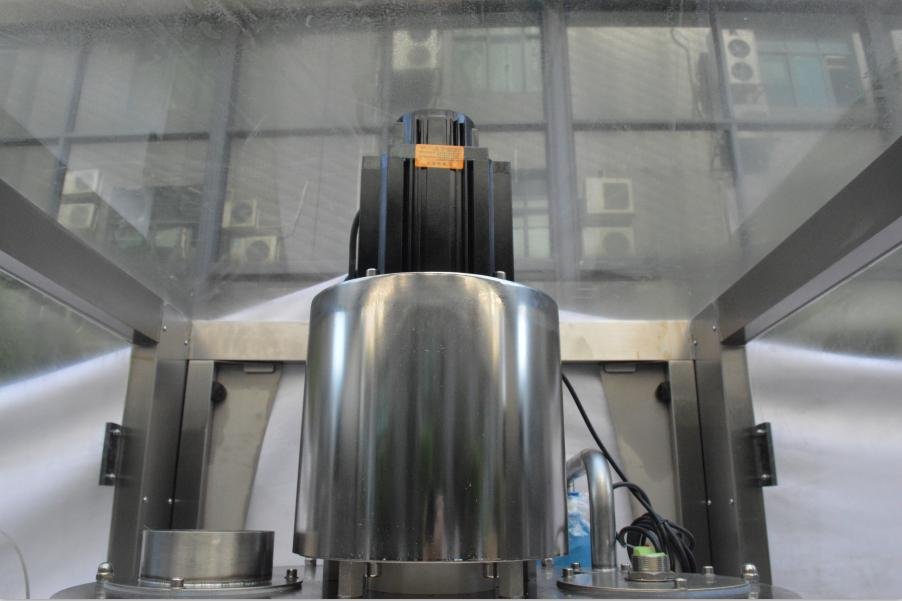

With servo motor/higher precision

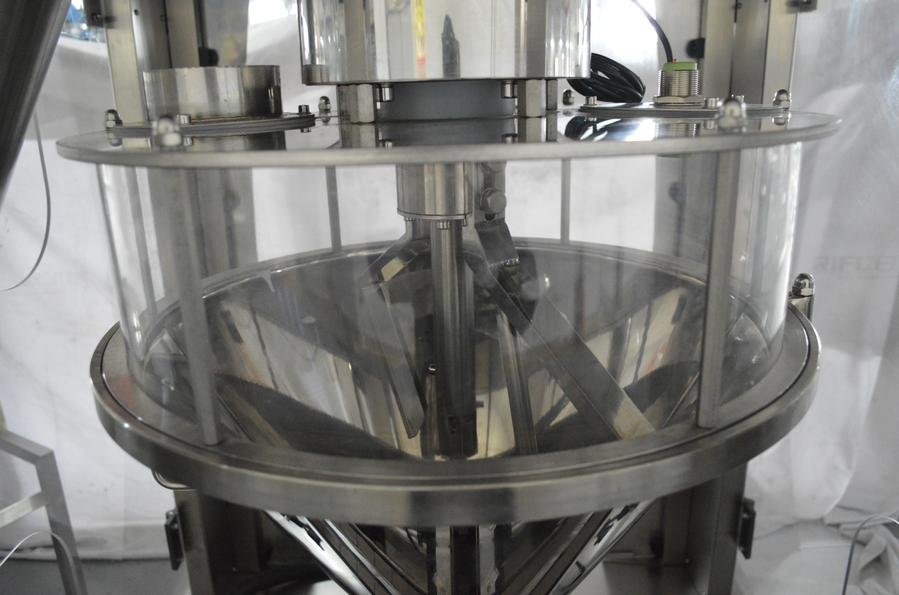

Transparent visual material bin/material state at a glance

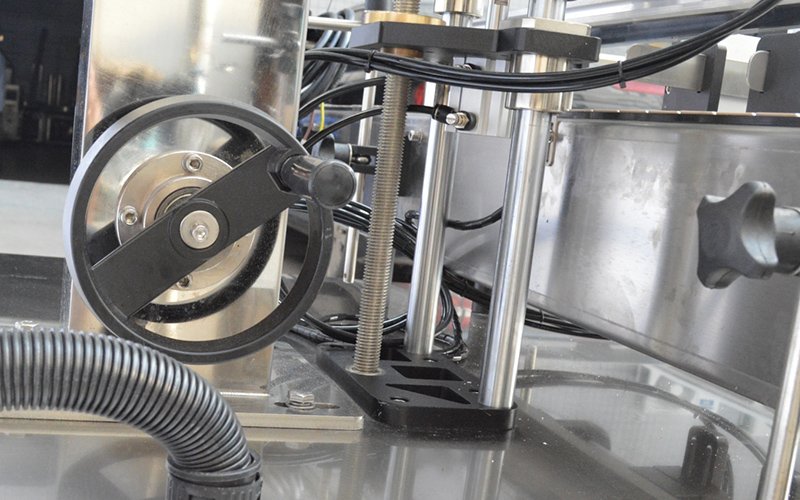

Lifting metering system/more convenient adjustment

Product Parameters

Type

 RF-F80

Capacity

15-30 bottles/min

According to the specific bottle and fill quantity to determine

Applicable specifications

Customizable

transform screw attachment

Filling heads

 Single head

Measurement error

 ±1%

Power supply

 380V

Power

 3KW

Size

 2000×1200×2000mm

 Weight

 约300kg
