Double-head Powder Weighing Filling Machine

banner

PRODUCTS

We believe that the quality is our paramount and Qingdao HuaHan have been supplying best quality products with the most competitive price

_0003_12-Double head powder filling machine双头粉剂灌装机
_0003_12-Double head powder filling machine双头粉剂灌装机

Double-head Powder Weighing Filling Machine

Automatic powder weighing filling machine according to the national GMP standard design, this machine and bottle machine, sealing machine, labeling machine and other equipment composed of assembly line.

It is suitable for packing powdery materials in food, medicine, daily use department stores and other industries. Such as milk powder, glucose, protein powder, cocoa powder, coffee powder, rice powder, solid drinks and other powder, ultra-fine powder materials.

The whole machine frame is made of stainless steel, motor, cylinder, electrical accessories, pneumatic components are selected well-known brand, also can be designated by the customer brand. Can be applied to food and pharmaceutical and corrosive chemical raw materials.

Centralized dedusting, no dust pollution workshop, residue cleaning convenient, can be washed with water.

Product Description

Product Description

1. All stainless steel structure, horizontal open type feed box (inside and outside polishing) , cleaning is very convenient.

2. High precision servo motor control filling, accurate measurement.

3. All kinds of products can be stored to adjust the parameters of the formula, for future use, up to 8 recipes stored.

4. The weighing system with high reaction speed can ensure high filling speed and high precision.

5. The filling head is equipped with a handwheel to adjust the height, and can be easily filled in a variety of cans.

6. Fixed screw installation structure, Canning does not produce metal pollution.

7. Double-row and double-head filling, main filling and filling to ensure high accuracy of Canning.

8. Servo and pneumatic systems control the holding tank and the horizontal moving tank, the positioning is accurate and the speed is fast.


Detailed Images

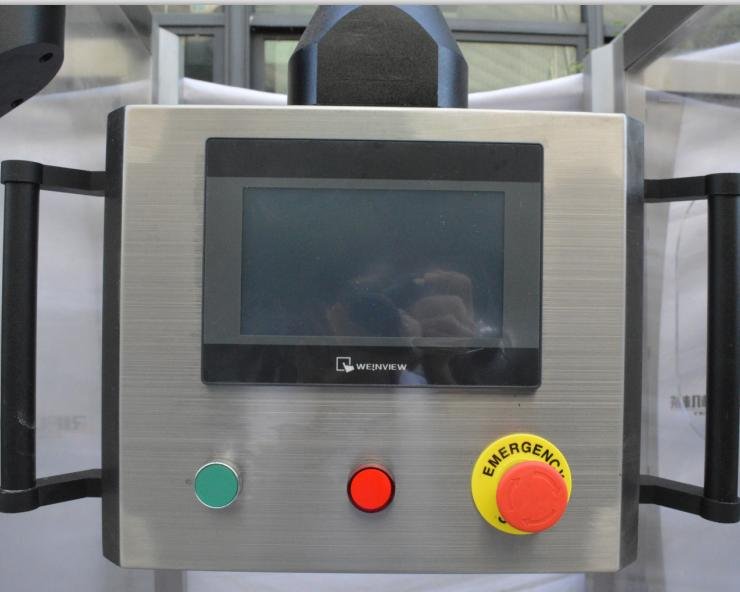

Man-machine operation interface/more convenient



High precision weighing sensor

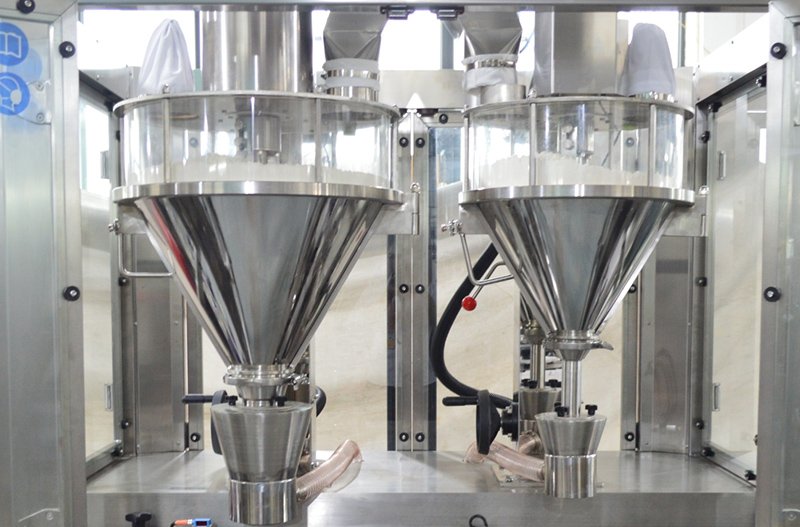

Transparent visual material bin/material state at a glance



Weighing elimination mechanism/automatic elimination of unqualified products


Powder filling machine configuration list

Name

Origin

Brand

stepper motor

Switzerland

ABB

touch screen

Germany

Siemens

PLC

China

XINJE

servo drivers

Switzerland

ABB

auxiliary relay

Japan

OMRON

cylinder stator

Taiwan

Adeke

bottle sensor

Germany

SICK


Product Parameters

Capacity

30-40 jars/min (jars/Jars)

Suitable specification

The weight can be adjusted via the touchscreen.

Filling head

 Double head

Measurement erro

 ±≤1%g

Power  Supply

 380V

Power

 5KW

Size

 4000×1350×2400mm

 Weight

 About 850kg

 Bin capacity

  50L(main),30L(supplement)
