PZS-A Full-automatic Electronic Counting Machine

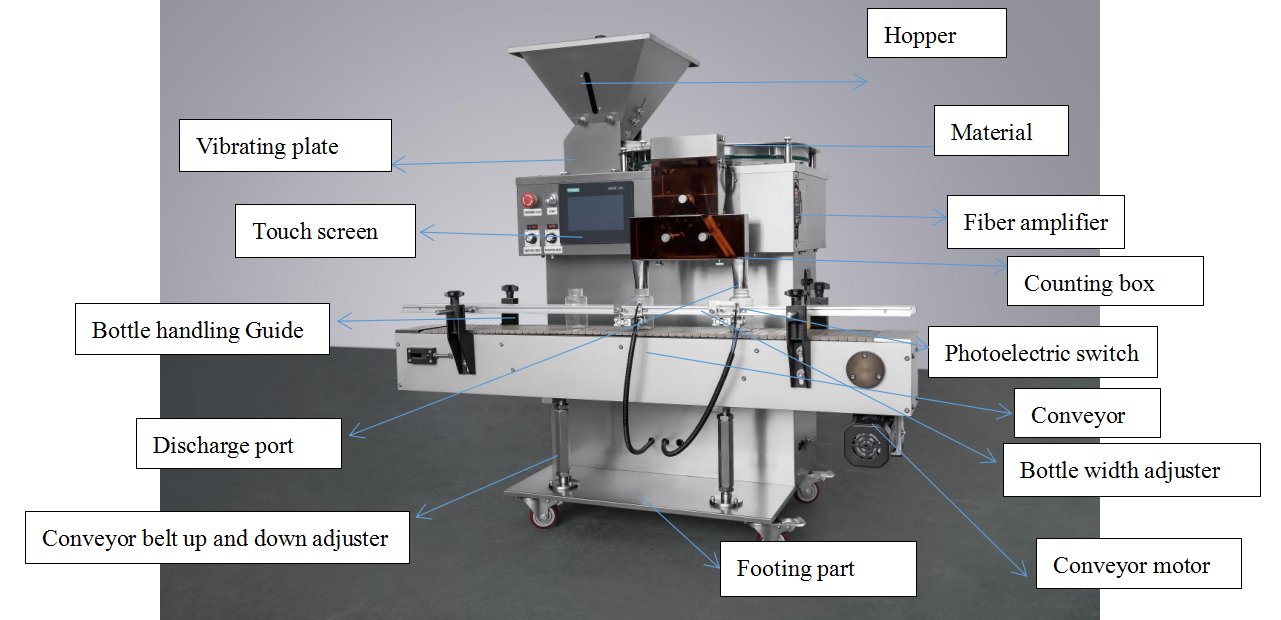

PZS-A full-automatic electronic counting machine our company adds a conveyor belt on the basis of ZS-2B and adds the function of freeing the hands of operators,Our company adopts the internationally advanced vibrating channel,Oscillator variable frequency speed , PLC intelligent control of touch screen , optical fiber-sensitive head count, system self-inspection, fault indication alarm, automatic shutdown and other advanced technology.According to GMP standards, the body uses all stainless steel quality ,which is a high-tech medical counting device integrated in the collective motor.

This machine belongs to the full automatic type counting device with reasonable design and compact structure. The machine is easy to operate and high-efficiency, which can be widely used in a variety of different shapes and size tablets, capsules, pills, transparent soft capsules and other drugs counting .The counting accuracy reach advanced levels in the world.This machine needs to bring its own air compressor。

Product Description

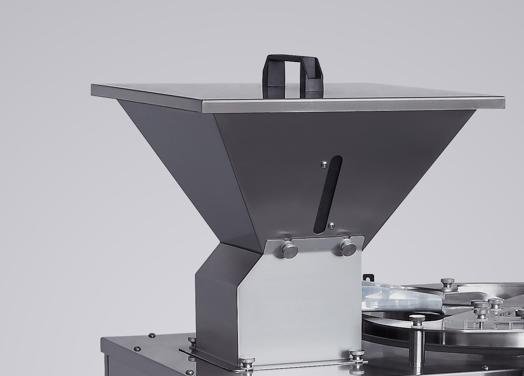

The discharge part is made of stainless steel 304 (0Cr18Ni9). According to GMP standard, the materials will be seal-delivered with less dust pollution, and the speed will be controled by different amplitudes of oscillator.

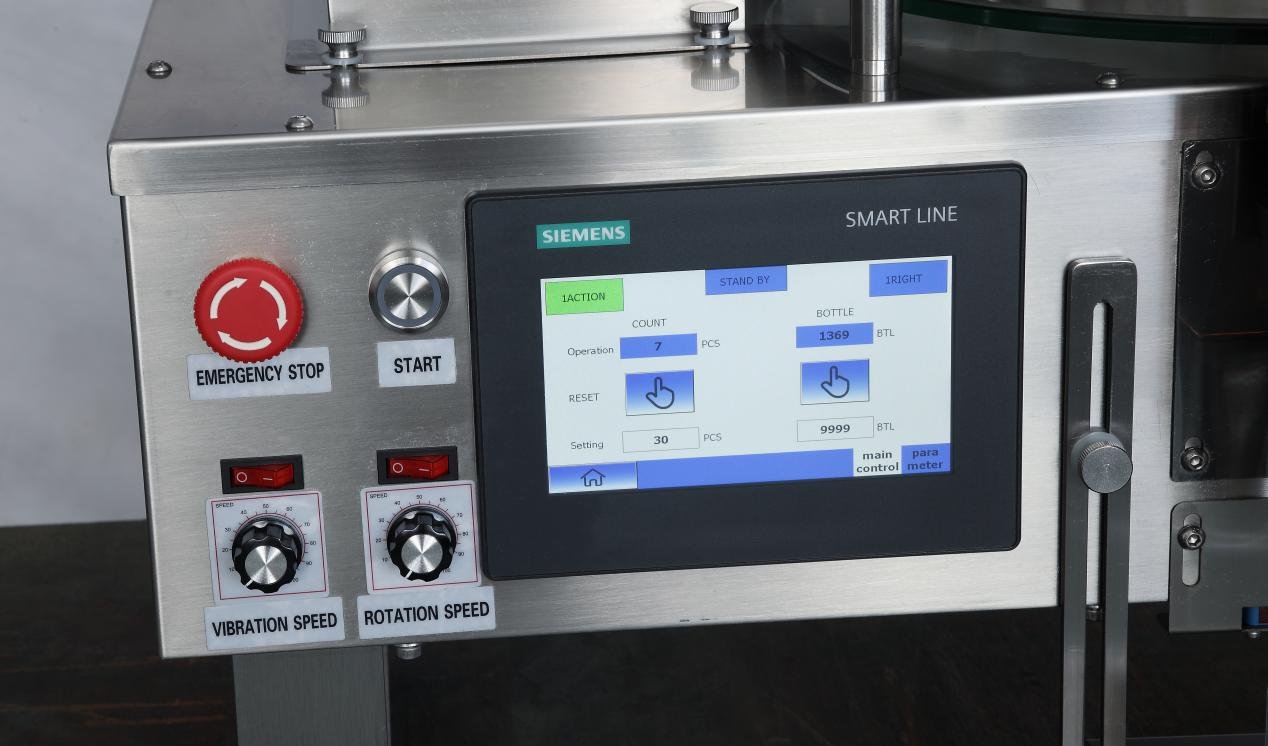

The control panel of this machine has an emergency stop button, the start button, the motor speed control knob, the vibration speed knob, and the smart touch screen. It’s easy to operate by  intelligent control.

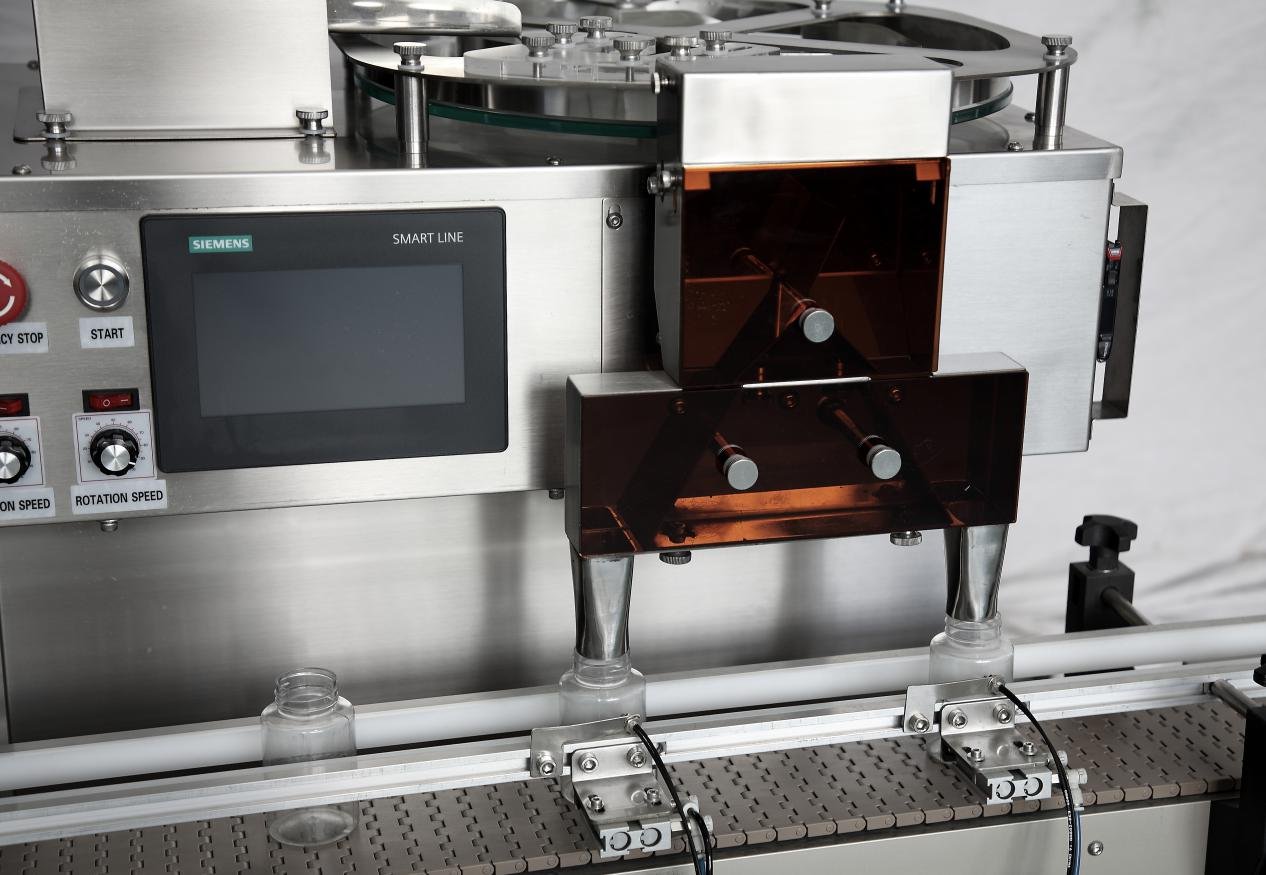

The infrared counter of this machine is compose of Japan's KEYENCE fiber optic sensor and sensing head .Compared with other machines, this machine has higher accuracy and faster speed.

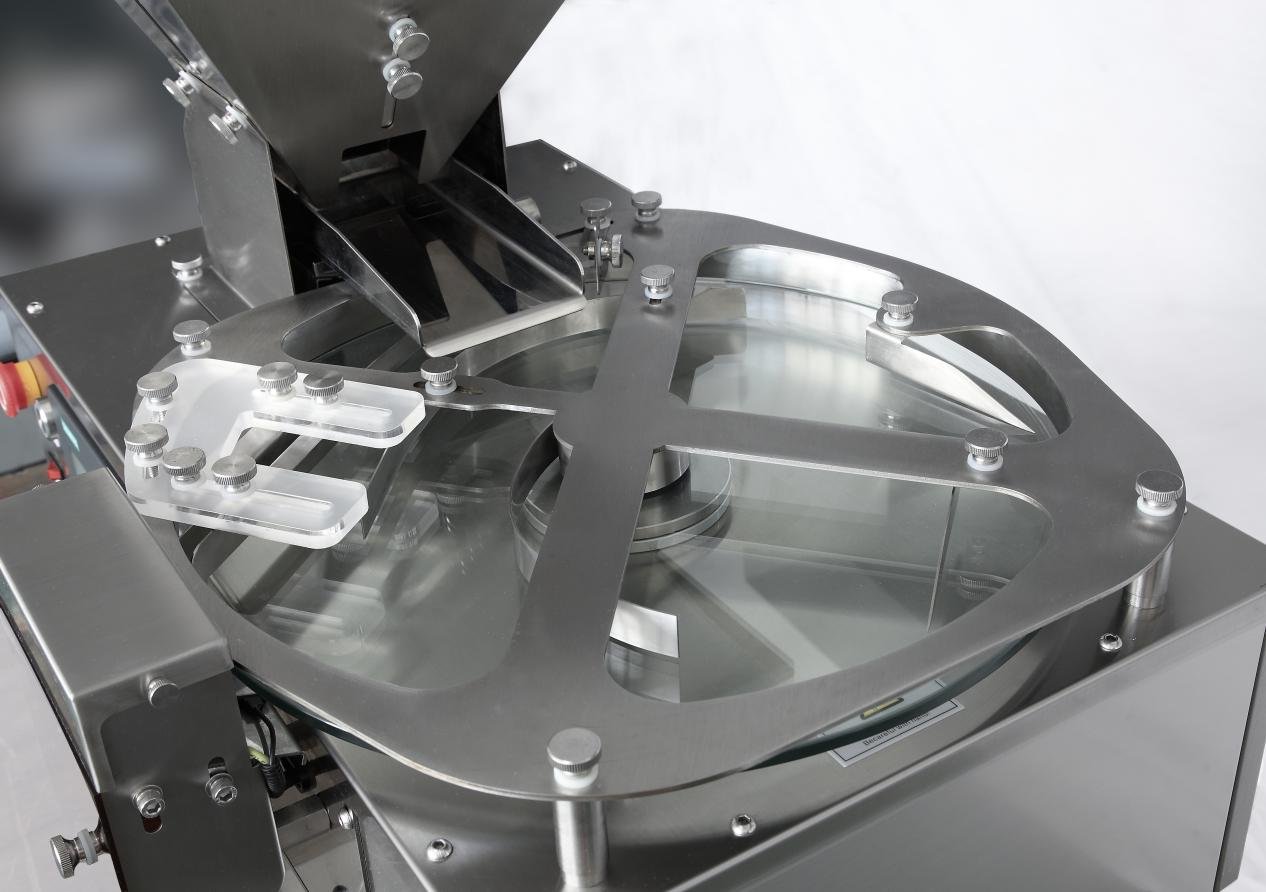

He machine turntable is composed of high quality toughened glass and all stainless steel.It has rotate counting design, and the speed can be adjusted, which is convenient to operate.

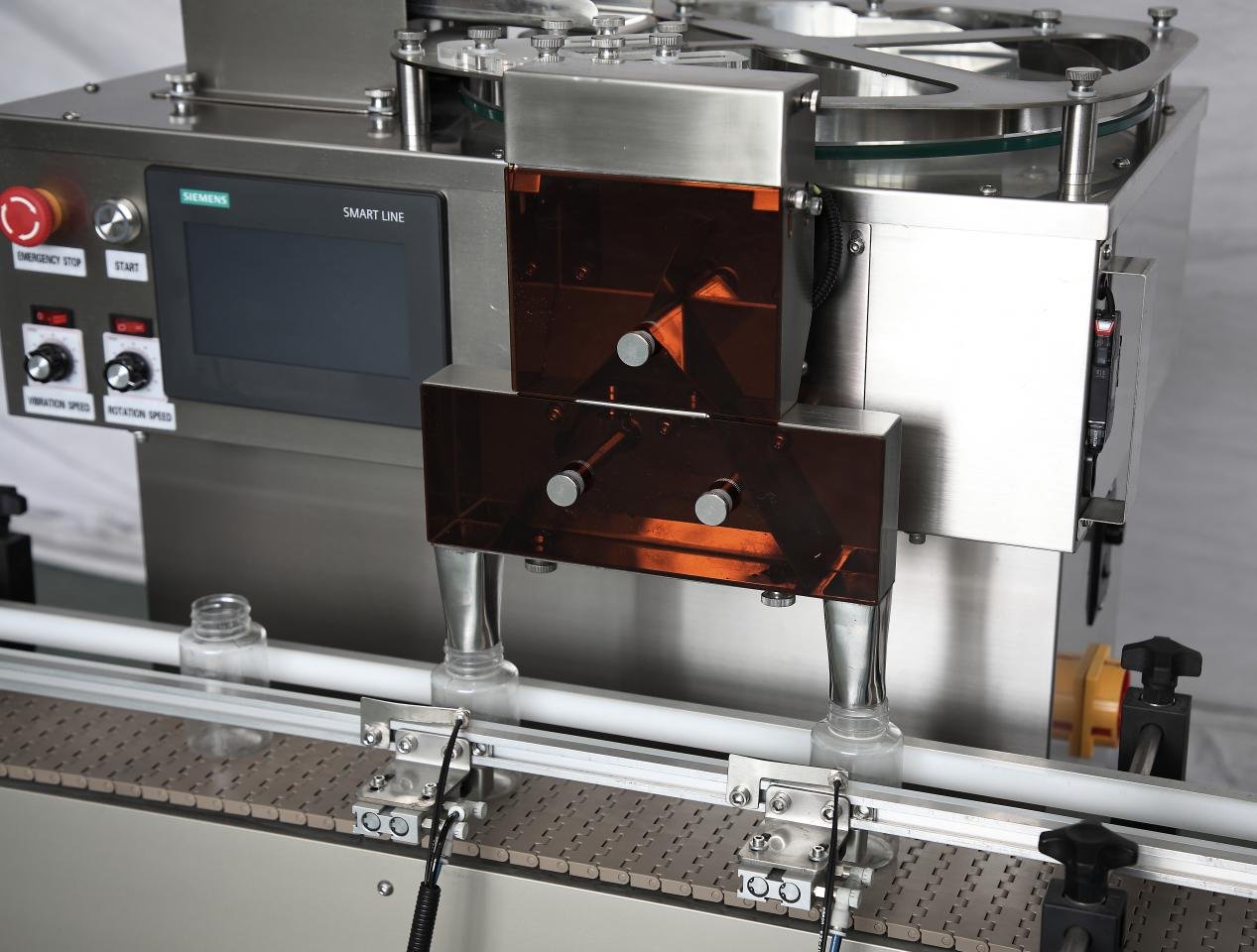

The conveyor system of this machine adopts medical grade crawler, which complies with GMP standards. The core component of light control technology adopts KEYENCE optical fiber probe, which can automatically detect materials without bottles and filling.

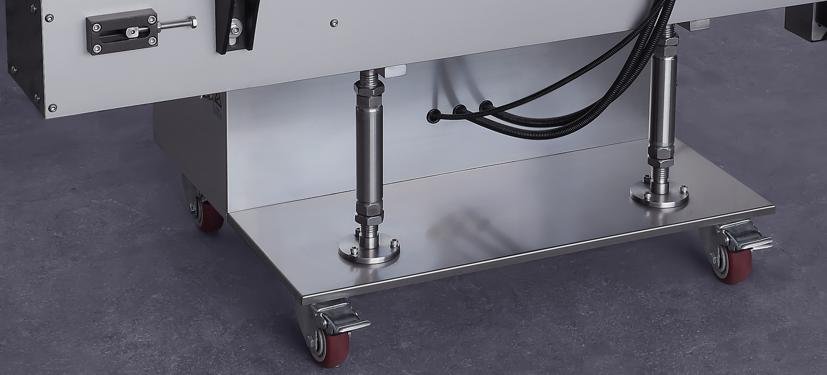

On the basis of ZS-2B, this machine adds a movable foot, which is more convenient and flexible in the use of equipment and the rapid movement of the work site.


Scope of application


Counting machine configuration list

No

Name

Specification

Brand

Quantity

1

7 inch touch screen

Siemens

6AV6648-ODC11-3AXO

1

2

PLC

Siemens

6ES7288-1ST20-0AA1

1

3

Optical Fiber Sensor

Japan KEYENCE

FS-N41N

1

4

 Fiber Sensor

Japan KEYENCE

FU-E40

1

5

Fiber amplifier

Japan KEYENCE

FS-N18N

1

6

General optical fiber

Japan KEYENCE

FU-6F

1

7

Motor

Zhejiang Tongli

4RK40RGN-C

1

8

Motor

Zhejiang Tongli

5GU-75-K

1

9

Oscillator

Self made

220V/50HZ

1

10

solid state relay

Taiwan Yangming

SSR-10 DD

2

11

Electromagnet

Wenzhou Jifa

JF-1253

2

12

Intermediate relay

Japan IDEC

RJ1S-CL-D24

2

13

Solenoid valve

AIRTAC

4N210-08-B

2

14

Air filter pressure regulating valve

AIRTAC

AFR-2000

1

15

Twin shaft cylinders

AIRTAC

TN10X10-S

1

16

Mini cylinder

AIRTAC

MI10X15-S-CA

1


Product Parameters

Model

PZS-A

Production

600-2000pcs/min

Application

Hard capsules, soft capsules, tablets, pills, etc.

Control device

Touch screen PLC intelligent control

Counting method

Infrared detection

Suitable size

Capsule Model000#-5#

Tablet diameter5-25MM

Capsule model 00 # -5 #

Tablet diameter 5-25mm

Counting error

±0.1%

Power voltage

220V/50-60Hz /800W

Net weight(kg)

120kg

Gross weight(kg)

170KG

Machine dimension

1300MMX570MMX1300MM

Overall dimension

1430MMX670MMX1470MM

Machine material

(0Cr18Ni9)Material stainless steel 304 (0Cr18Ni9)
