ZS-2B Electronic Counting Machine

Product Categories

Our company adopts the internationally advanced vibrating channel,Oscillator variable frequency speed , PLC intelligent control of touch screen , optical fiber-sensitive head count, system self-inspection, fault indication alarm, automatic shutdown and other advanced technology.According to GMP standards, the body uses all stainless steel quality ,which is a high-tech medical counting device integrated in the collective motor.

Share To:

Inquiry Now

Add Inquiry Cart

Product Description

This machine belongs to the quasi desktop type counting device with reasonable design and compact structure. The machine is easy to operate and high-efficiency, which can be widely used in a variety of different shapes and size tablets, capsules, pills, transparent soft capsules and other drugs counting .The counting accuracy reach advanced levels in the world.

Scope of application

ZS-2B Counting machine configuration list

No	Name	Specification	Brand	Quantity
1	touch screen	6AV6648-ODC11-3AXO	SIEMENS	1
2	PLC Controller	6ES7288-1ST20-0AA1	SIEMENS	1
3	Fiber Optic Sensor	FS-N41N	Japan Keant	1
4	Optical fiber	FU-E40	Japan Keant	1
5	Motor	4RK40RGN-C	ZHEJIANG ZAHNPENG	1
6	Oscillator	self made	Fupai	1
7	Intermediate relay	RJ1S-CL-D24	Japan Idec	1
8	solid state relay	SSR-10 DD	Taiwan Yangming	2
9	Electromagnet	self made	Fupai	2

Product Parameters

Product model：ZS-2B
1	speed	600-2000pcs/min
2	Application	Hard capsules, soft capsules, tablets, pills, etc.
3	Control device	Touch screen
4	Counting method	Infrared detection
5	Suitable size	Capsule model 00 # -5 # tablet diameter 5-25mm
6	Counting error	±0.3%
7	Voltage	220V/50-60Hz /600W
8	Weight（kg）	60kg

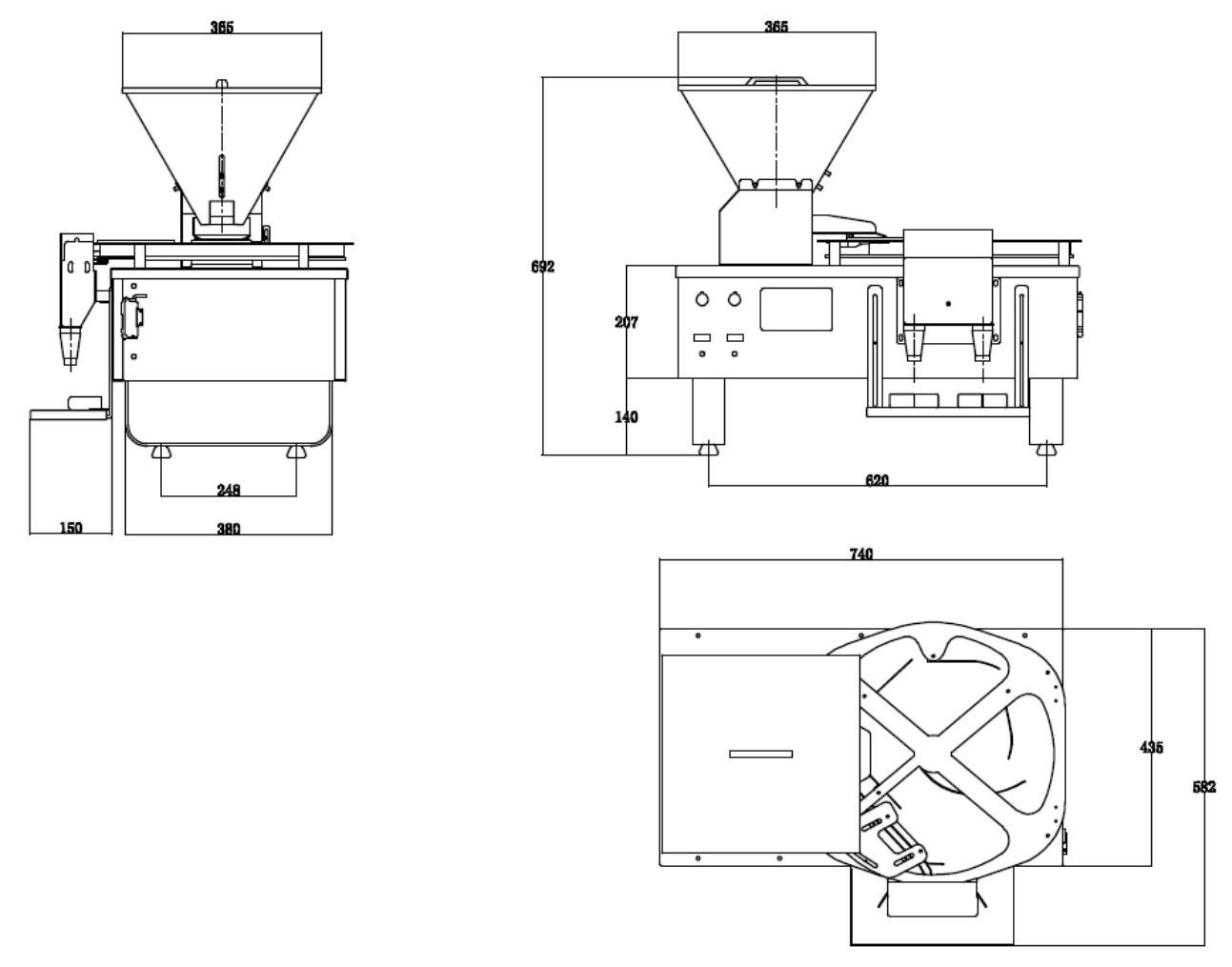

9	Overall dimension	735mmX580MMX720MM
10	Machine material	Material stainless steel 304 (0Cr18Ni9)
