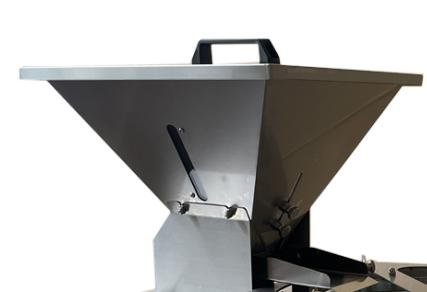

The discharge part is made of stainless steel 304 (0Cr18Ni9). According to GMP standard, the materials will be seal-delivered with less dust pollution, and the speed will be controled by different amplitudes of oscillator.

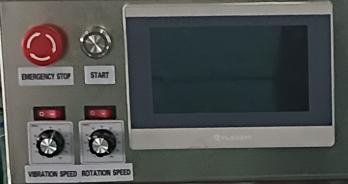

The control panel of this machine has an emergency stop button, the start button, the motor speed control knob, the vibration speed knob, and the smart touch screen. It’s easy to operate by intelligent control.
The infrared counter of this machine is compose of Japan's KEYENCE fiber optic sensor and sensing head .Compared with other machines, this machine has higher accuracy and faster speed.

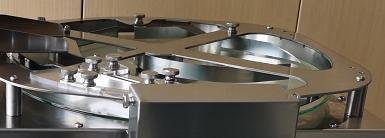

he machine turntable is composed of high quality toughened glass and all stainless steel.It has rotate counting design, and the speed can be adjusted, which is convenient to operate.

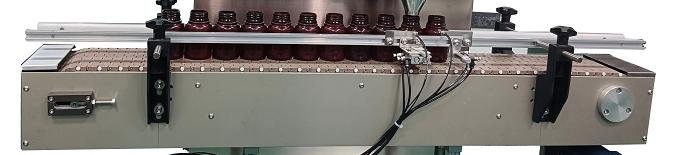

The conveyor system of this machine adopts medical grade crawler, which complies with GMP standards. The core component of light control technology adopts Omron's optical fiber probe, which can automatically detect materials without bottles and filling.

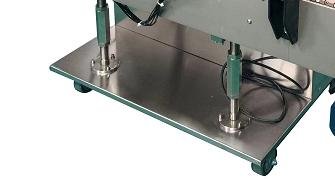

On the basis of ZS-2B, this machine adds a movable foot, which is more convenient and flexible in the use of equipment and the rapid movement of the work site.
Scope of application
Counting machine configuration list
No | Name | Specification | Brand | Quantity |
1 | 7 inch touch screen | FLEXEM | FE6070W | 1 |
2 | PLC | Inovance | H1U-1410MT-XP | 1 |
3 | Optical Fiber Sensor | Japan KEYENCE | FS-N41N | 1 |
4 | Fiber Sensor | Japan KEYENCE | FU-E40 | 1 |
5 | Fiber amplifier | OMRON | E3X-ZD11 | 1 |
6 | General optical fiber | OMRON | E32-ED200 | 1 |
7 | Motor | Zhejiang Zhanpeng | 4RK40RGN-C | 1 |
8 | Motor | Zhejiang Zhanpeng | 5GU-75-K | 1 |
9 | Oscillator | Self made | 220V/50HZ | 1 |
10 | solid state relay | Taiwan Yangming | SSR-10 DD | 2 |
11 | Electromagnet | Wenzhou Jifa | JF-1253 | 2 |
12 | Intermediate relay | Japan IDEC | RJ1S-CL-D24 | 2 |
13 | Solenoid valve | AIRTAC | 4N210-08-B | 4 |
14 | Air filter pressure regulating valve | AIRTAC | AFR-2000 | 1 |
15 | Mini cylinder | AIRTAC | MI12X15-S-CA | 2 |
16 | Twin shaft cylinders | AIRTAC | TN10X10-S | 1 |
17 | Mini cylinder | AIRTAC | MI10X15-S-CA | 1 |
